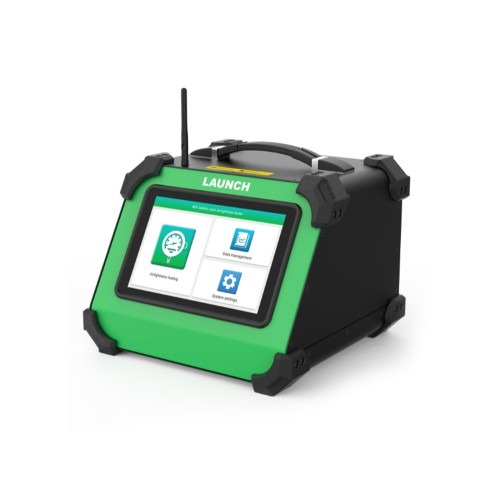

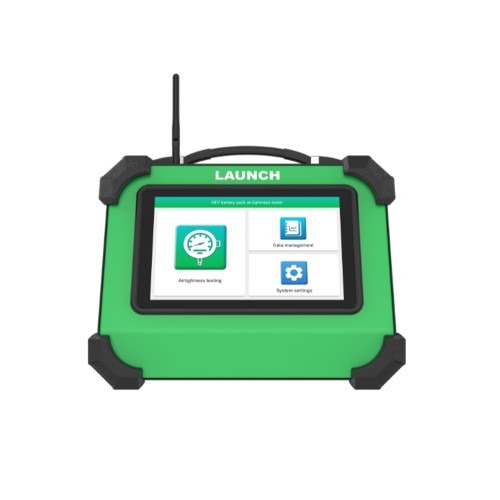

LAUNCH EVT511 EV Battery Airtightness Detector

  • LAUNCH EVT511 EV Battery Airtightness Detector
  • LAUNCH EVT511 EV Battery Airtightness Detector
Menşe yeri Çin
Marka adı Launch
Model numarası EVT511 EV Pil Hava geçirmezlik dedektörünü başlatın
Min sipariş miktarı 1
Fiyat $1699
Ambalaj bilgileri 7.0kg
Teslim süresi 1 iş günü
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 1000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Model Adı EVT511 EV Pil Hava geçirmezlik dedektörünü başlatın Kaynağı Çin toprakları
Kalite Üst
Vurgulamak

LAUNCH EVT511 Airtightness Detector

,

EV Battery Airtightness Detector
Mesaj bırakın
Ürün Açıklaması

Product Description

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.
LAUNCH EVT511EV Battery Airtightness Detector

After the repair of the battery or modules inside the battery pack is completed, it is necessary to conduct a sealing test before installation. Without this test, if the sealing is inadequate and the vehicle drives on wet roads, it can easily lead to water ingress into the battery pack, causing internal circuit short circuits and ultimately accidents. Therefore, testing the sealing of the battery pack is a mandatory requirement.

Product Features:

1. Presets battery pack parameters such as:
volume, pressure, stage testing time, leakage limit, etc.
2. High-sensitivity pressure sensing, high testing accuracy and stability.
3. Equipped with a pressure gauge to display real-time pressure curve during the process, making the testing process clear at a glance.
4. Supports multiple languages, including: Traditional Chinese, English, German, French, Japanese, Spanish, Portuguese, Italian, etc.

Low-pressure Airtightness Testing Theory Testing Theory

The compressed air is used as the medium to apply a certain pressure to the battery pack cavity, and a highly sensitive sensor is used to detect pressure changes to judge its sealing.

Product Specifications:

Power: 20W (Max)
Test Pressure Range: 0~30Kpa
Sensor Resolution: 1Pa
Test Accuracy: ±5pa
Communication Interface: RS485
Display: 10.1'' LCD screen
Data Storage Method: Internal storage or data upload to USB drive
Power Supply: AC90~264V, 50Hz/60Hz
Air Source Requirements: 0.1~1.0 Mpa dry compressed air
Intake Port/Test Port: φ6mm/φ6mm
Working Temperature/Hhumidity: -10~55°C/10%~90% @25°C
Dimension: 349*329*366.5 (mm)
Weight: 4.0kg
Package includes:

1pc x LAUNCH EVT511EV Battery Airtightness Detector
LAUNCH EVT511 EV Battery Airtightness Detector 0
