Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B

  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
  • Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B
Menşe yeri ÇİN
Marka adı For Crown
Model numarası Taç için
Min sipariş miktarı 1
Ambalaj bilgileri Paketi
Teslim süresi 1 iş günü
Ödeme koşulları T/T, Western Union, MoneyGram
Yetenek temini 1000

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Model Crown CAN Arayüzü için Model adı Taç için
Köken Anakara Çin Kalite Üst
Yazılım sürümü 5. versiyon.33 modelleri destekler Tüm Crown forkliftler
İsim taç teşhis aracı için Öğe türü Araç Arıza Teşhis Kabloları ve Konektörleri
Otomotiv Tanı Aracı Crown rcan için -usb arayüz oluşturabilir Donanım sürümü Pcan taç için kutu
Anahtar Crown Forklift Tarayıcı Aracı anahtar 1 Crown Onarım Yazılımı
Öğe Adı PCAN Crown Teşhis Aracı için anahtar 2 Kılavuz Kraliyet Parçaları Kataloğu ve Servisi Onarım
Marka adı Auto Forklift for Crown Scan tools
Vurgulamak

Version 5.33 Forklift Diagnostic Tool

,

ISO 11898-2 Crown RCAN USB Interface

,

CAN Specifications 2.0A and 2.0B PCAN-USB Adapter
Mesaj bırakın
Ürün Açıklaması

Forklift Coach Lift-Truck Truck Diagnostic Tool Crown Rcan Pcan USB Can Diagnostic Cable For Toyota Crown Peak System

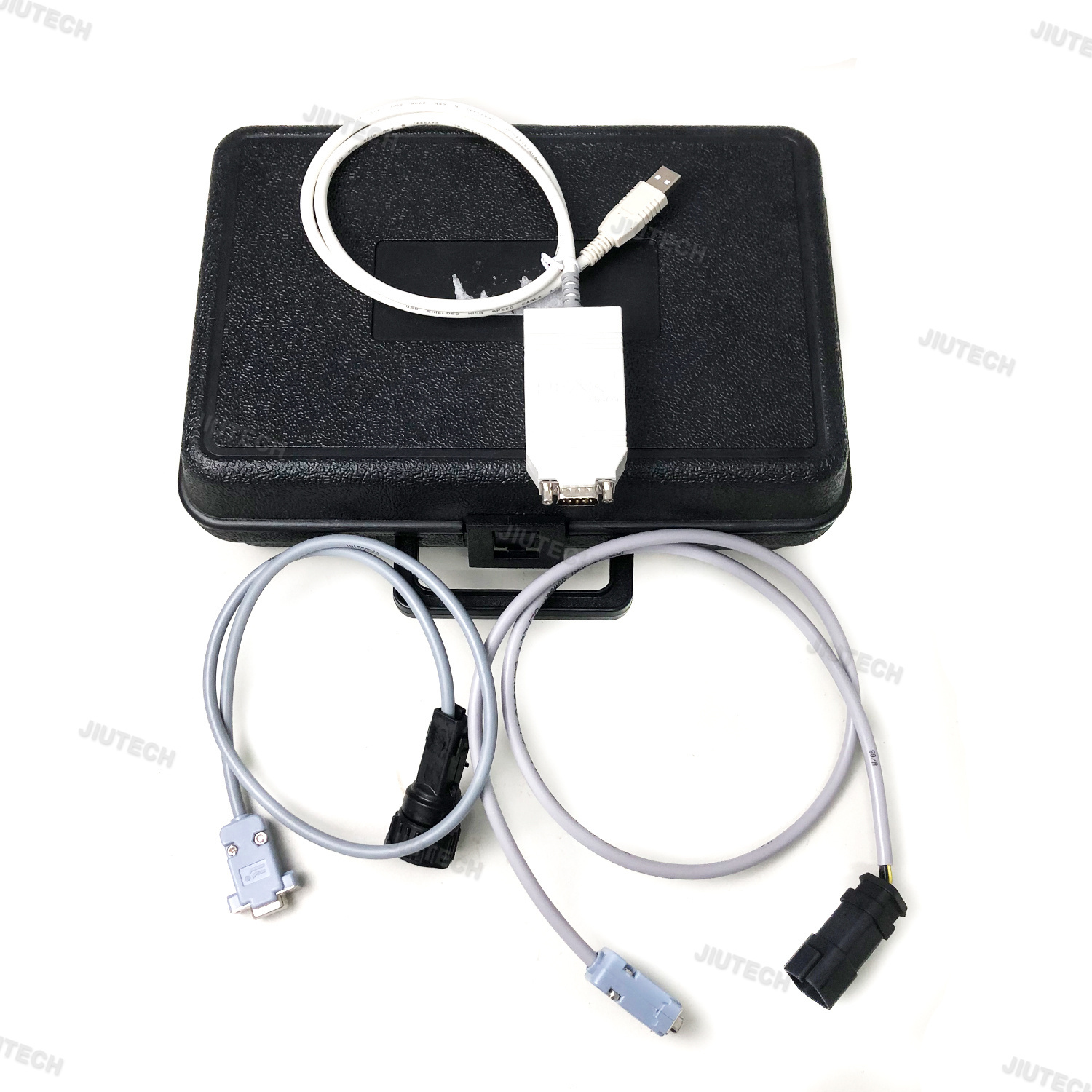

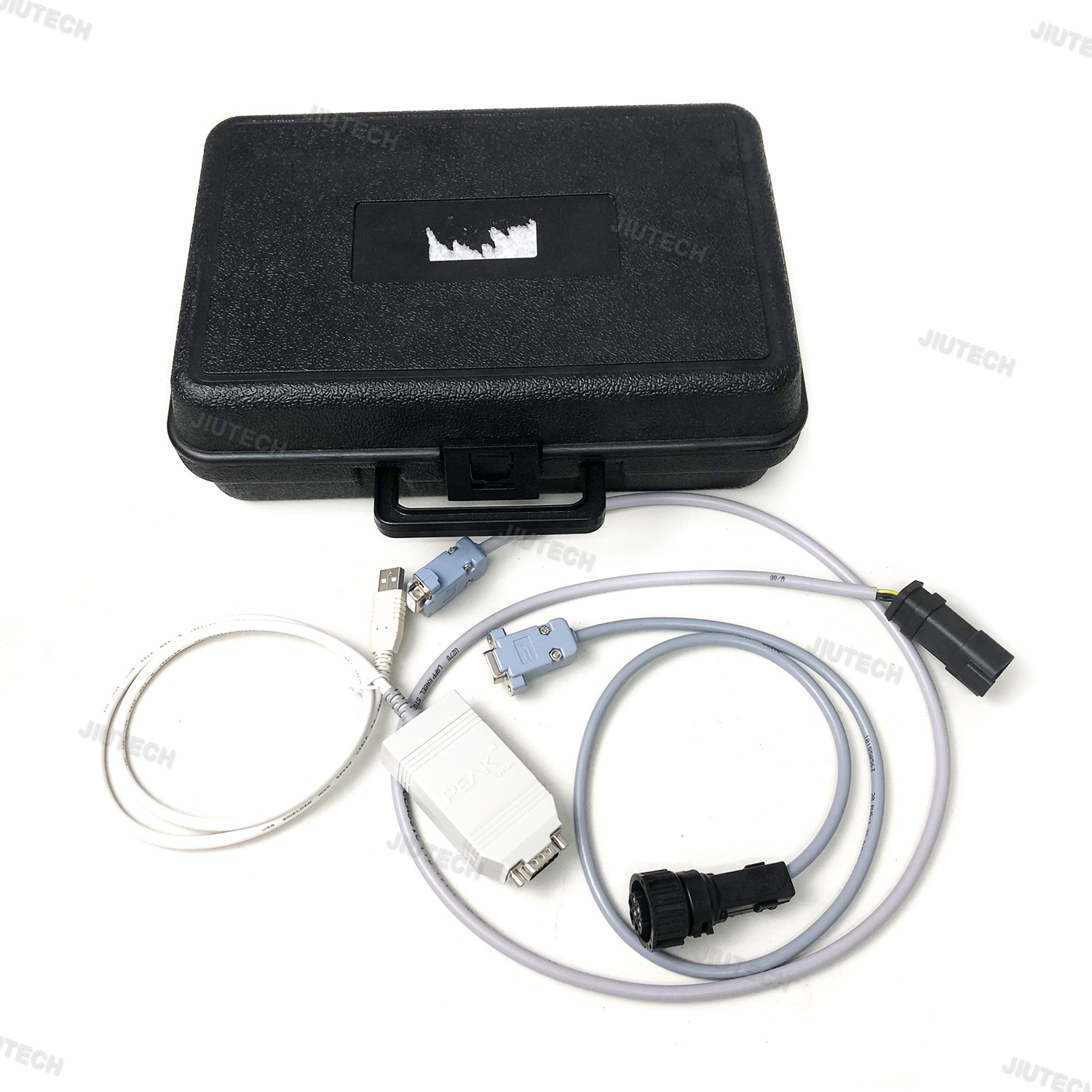

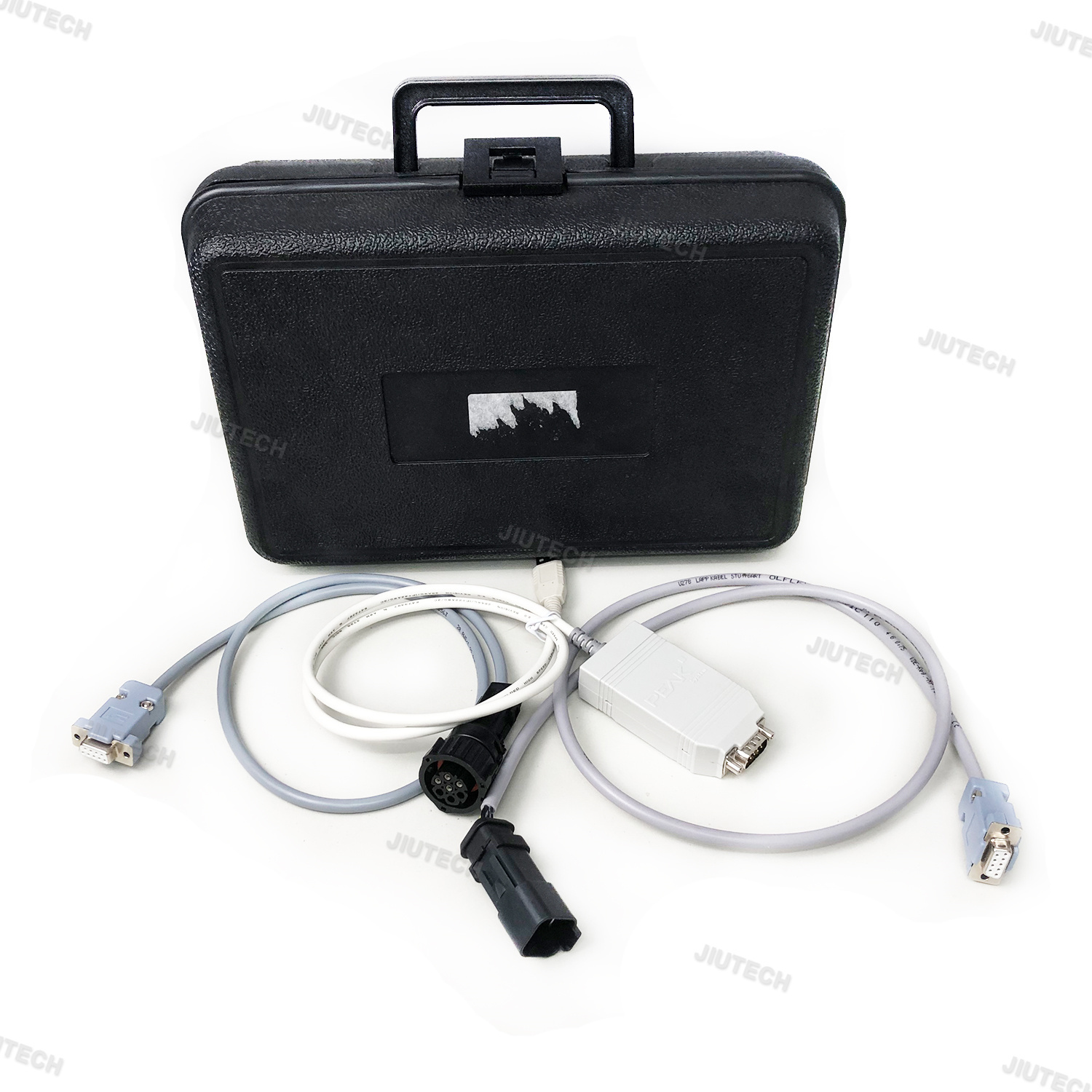

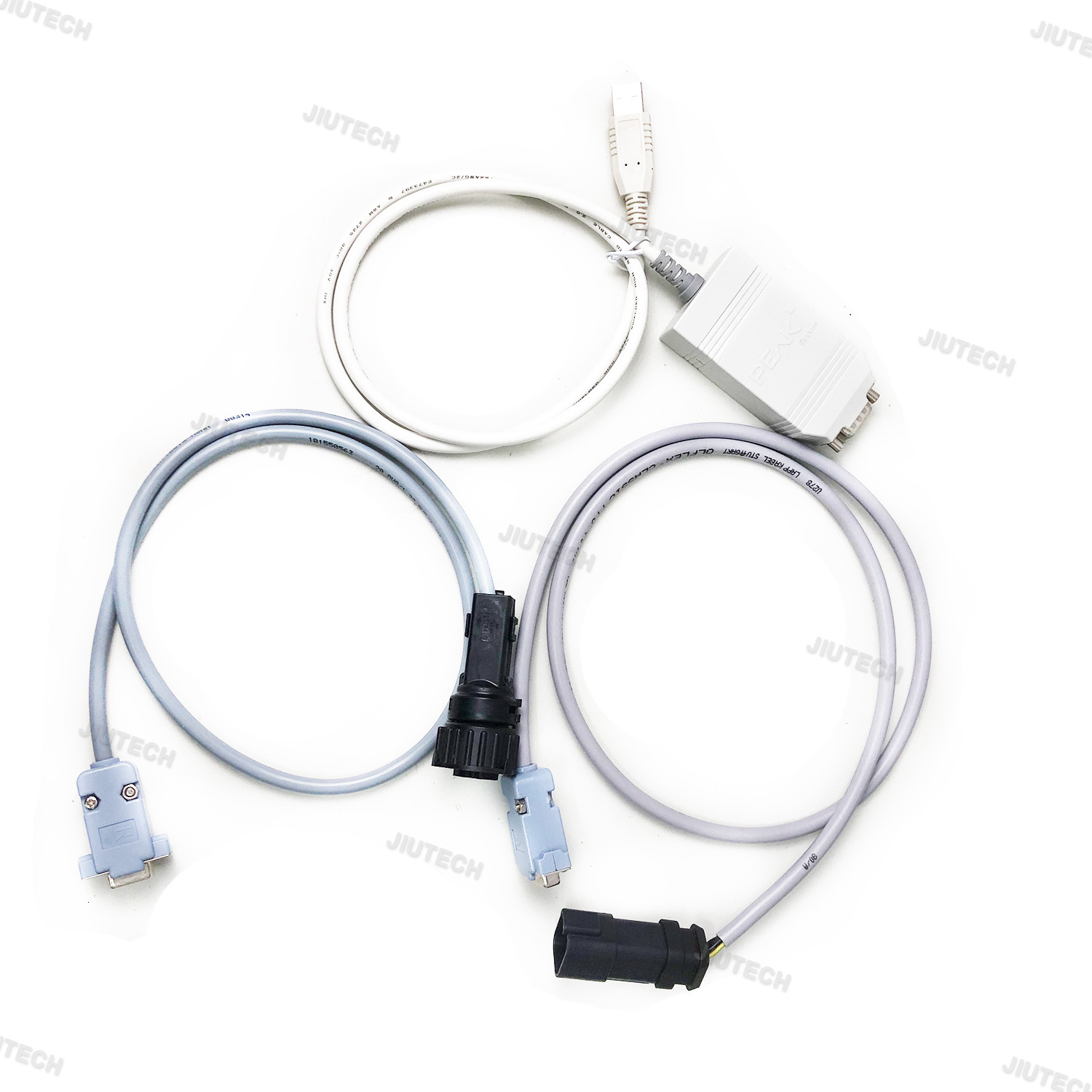

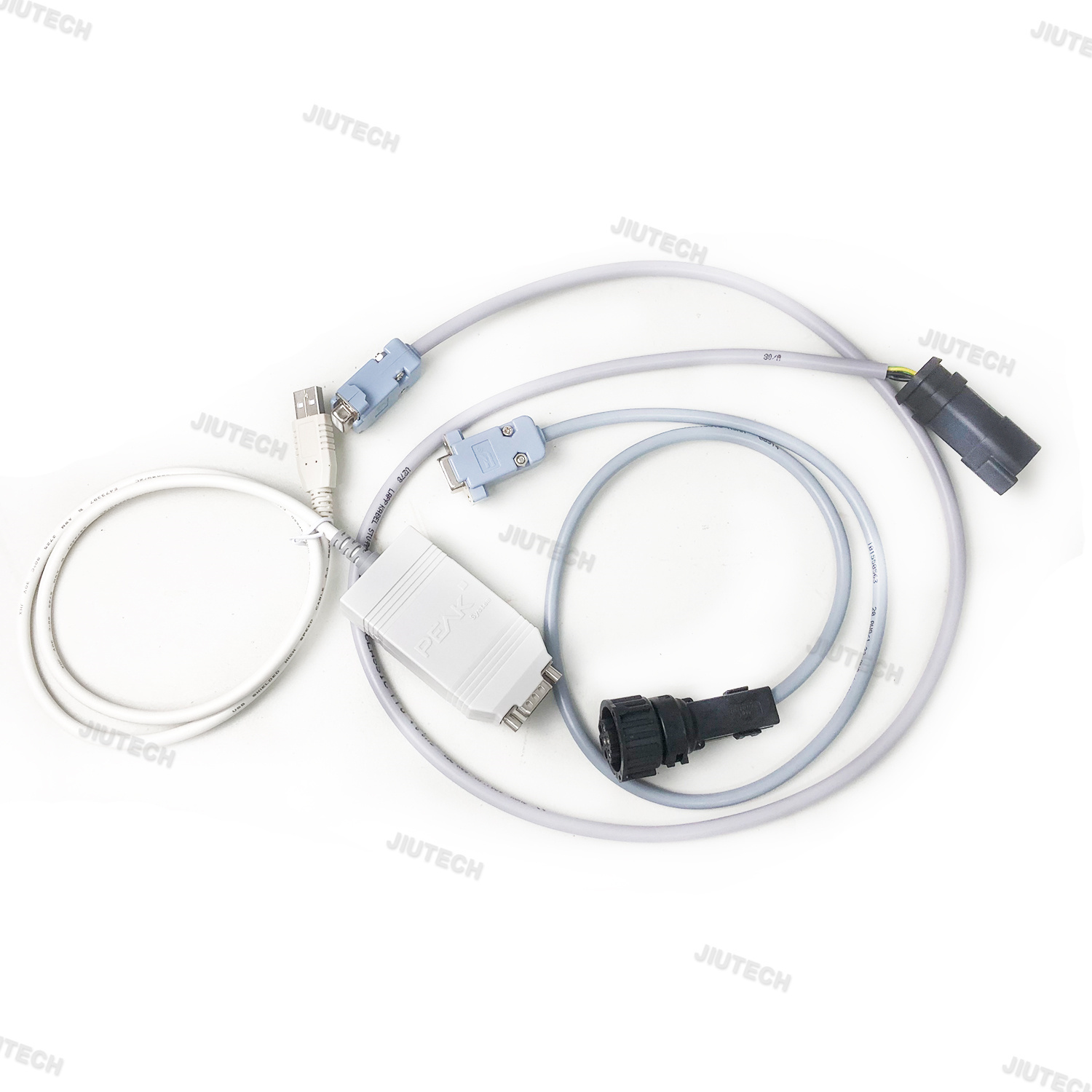

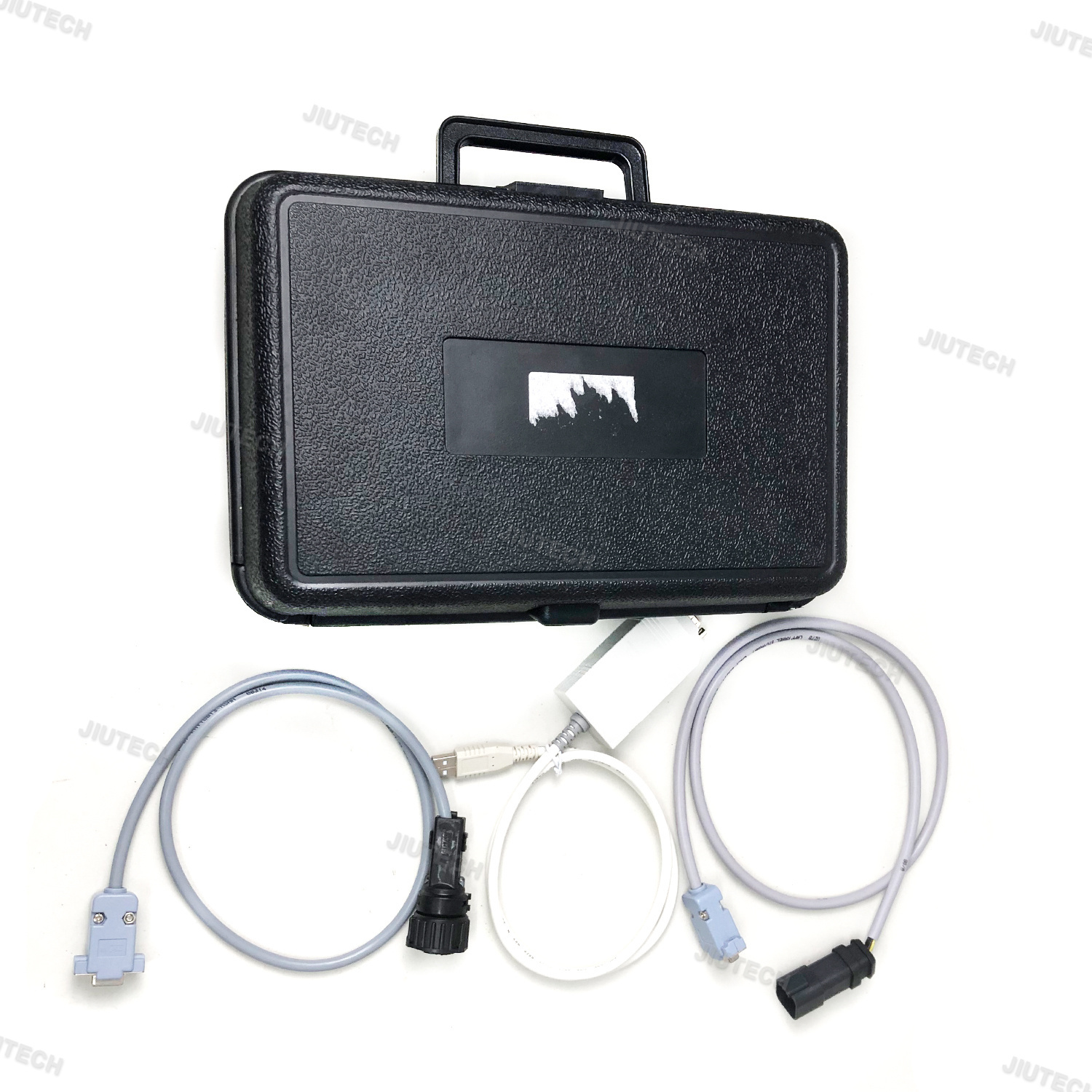

Package List :



1* Crown USB adapter



1* Can cable



1* cd diagnostic software



Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 0Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 1Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 2

Please Note: if you need repair manual need to be purchased separately



supports models:All crown forklifts

Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 3



Description:
The PCAN-USB adapter enables simple connection to CAN networks. Its compact plastic casing makes it suitable for mobile applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and the programming interface PCAN-Basic.



Technical Specifications :

Adapter for the USB connection (Full-Speed mode, compatible with USB 1.1, USB 2.0, and USB 3.0)
High-speed CAN connection (ISO 11898-2)
Bit rates from 5 kbit/s up to 1 Mbit/s
Time stamp resolution approx. 42 µs
Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)

CAN bus connection via D-Sub, 9-pin (in accordance with CiA 106)
N-XP SJA1000 CAN controller, 16 MHz clock frequency
N-XP PCA82C251 CAN transceiver
Galvanic isolation on the CAN connection up to 500 V (only for IPEH-002022)
CAN termination can be activated through a solder jumper
5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
Voltage supply via USB
Extended operating temperature range from -40 to +85 °C (-40 to +185 °F)Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 4Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 5Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 6Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 7Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 8We also have other forklifts: linde , still, yale hystre, cat, mitsubishi, judit

Can be installed in a computer

The following is the installed interface diagram:

Crown RCAN USB Interface Forklift Diagnostic Tool with Version 5.33 Software ISO 11898-2 and CAN Specifications 2.0A and 2.0B 9
