2025 OBDSTAR D800 A+B+C+D Full Configuration Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator
| Menşe yeri | Çin |
|---|---|
| Marka adı | OBDSTAR D800 |
| Model numarası | A+B+C+D: Jetski, dış gemiler, iç gemiler, jeneratörler |
| Min sipariş miktarı | bir |
| Fiyat | 3100$ |
| Ambalaj bilgileri | 52.3cm*39.3cm*22cm /9.1kg |
| Teslim süresi | 1 iş günü |
| Ödeme koşulları | Banka havalesi, Para Gramı |
| Yetenek temini | Depoda |
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Model Adı | OBDSTAR D800 | Kaynağı | Çin toprakları |
|---|---|---|---|
| Kalite | Üst | Malzeme türü | Motor Analizörü |
| Türü | Araç Arıza Teşhis Kabloları ve Konektörleri | Paket | Standart Paket Kağıt Kutusu |
| Nakliye şartları | DHL,EMS,TNT,UPS,FEDEX | Renk | fotoğraf gösterisi olarak |
| Garanti | Bir Yıl | ||
| Vurgulamak | 2025 OBDSTAR D800,Outboard Marine Diagnostic Tool,A+B+C+D Marine Diagnostic Tool |
||
Ürün Açıklaması
Product Description

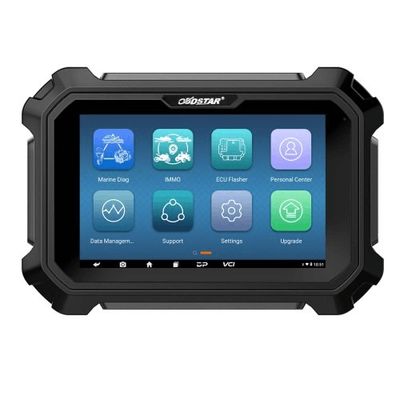

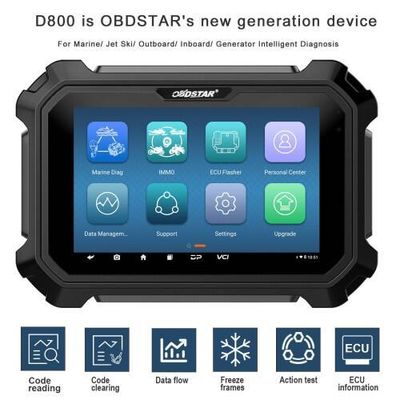

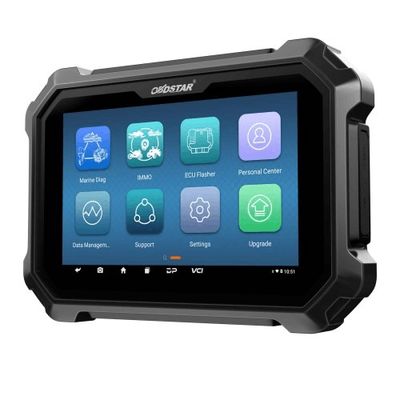

D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!
OBDSTAR D800 A+B+C+D Full Configuration Marine Diagnostic Tool for Jet Ski/ Outboard/ Inboard/ Generator
D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!
Product Features:
Product Functions
D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!
Product Features:
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.
D800 four configurations
D800 four configurations
D800 A: Jetski
D800 A+B: Jetski, Outboard
D800 C+D: Inboard, Generator
D800 A+B+C+D: Jetski, Outboard, Inboard, Generator
Product Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;
4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet, one-click software upgrade;
6. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.
Supported Brands:
CATERPILLAR(Coming soon), CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCURY/MERCURY RACING, MTU(Coming soon), PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, VM MOTORI,VOLVO PENTA, YAMAHA, YANMAR
More functions are under development...
Product Specifications:
CATERPILLAR(Coming soon), CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCURY/MERCURY RACING, MTU(Coming soon), PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, VM MOTORI,VOLVO PENTA, YAMAHA, YANMAR
More functions are under development...
Product Specifications:
| Operation system | Android 5.1.1 |
| CPU | Exynos4418 qual core ARM cortex A9 |
| Battery | 3700mA, rechargeable polymer lithium battery |
| Extension memory card | 32G micro SD (TF) card supported |
| Storage capacity | 32GB |
| LCD | 8.0 inch |
| LCD resolution | 1280*800 |
| Touch screen | Capacitive touch screen |
| Wifi | Supported |
| Camera | 5 mega rear view camera |
| Working temperature | -10℃～55℃ (14℉～131℉) |
| Storage temperature | -20℃～70℃ (-4℉～158℉) |
| Weight | 1kg (main unit) |
| Dimension | 254mm*174mm*35mm |

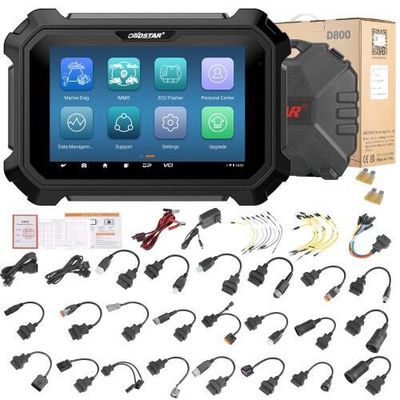

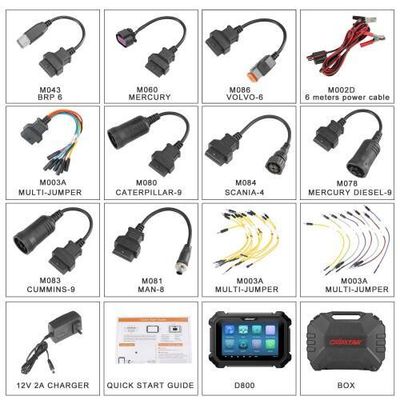

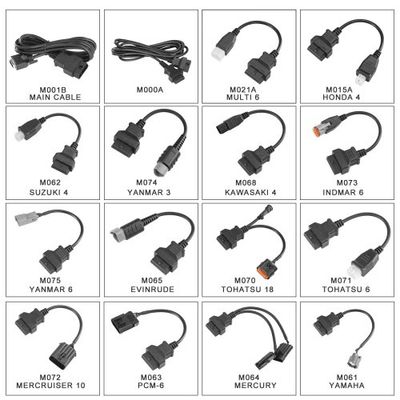

Package Includes:
1pc x Tablet
1pc x M000A 4 meters extension cable
1pc x M001B main cable
1pc x M002D 6 meters power cable
1pc x M003A multi functional jumper
1pc x M015A adapter for Honda
1pc x M021A adapter for PARSUN
1pc x M043 adapter for BRP
1pc x M060 adapter for MERCURY
1pc x M061 adapter for YAMAHA
1pc x M062 adapter for SUZUKI
1pc x M063 adapter for PCM-6
1pc x M064 adapter for MERCURY
1pc x M065 adapter for EVINRUDE
1pc x M068 adapter for KAWASAKI
1pc x M070 adapter for TOHATSU
1pc x M071 adapter for TOHATSU
1pc x M072 adapter for MERCRUISER
1pc x M073 adapter for INDMAR-6
1pc x M074 adapter for YANMAR-3
1pc x M075 adapter for YANMAR-6
1pc x M078 adapter for MERCURY DIESEL-9
1pc x M080 adapter for CATERPILLAR-9
1pc x M081 adapter for MAN-8
1pc x M083 adapter for CUMMINS-9
1pc x M084 adapter for SCANIA-4
1pc x M086 adapter for VOLVO-6
1pc x 12V 2A Charger
